A bubble curtain is an underwater barrier created by releasing compressed air through a perforated pipe installed along the bottom of a body of water. As the bubbles rise, they create a continuous vertical flow that can be used to influence sound, suspended material, surface debris, and water movement.
Also referred to as a pneumatic barrier or air curtain, the concept has been used for decades. One early application was reducing saltwater intrusion through canal locks. Today, bubble curtains are used in marine construction, oil and gas operations, environmental projects, ports, and other applications where a flexible underwater barrier is useful.
How Does a Bubble Curtain Work?
A typical bubble curtain system includes a perforated pipe or hose installed on the seabed or riverbed and connected to a source of compressed air. The piping is weighted or otherwise secured so it remains in position during operation.

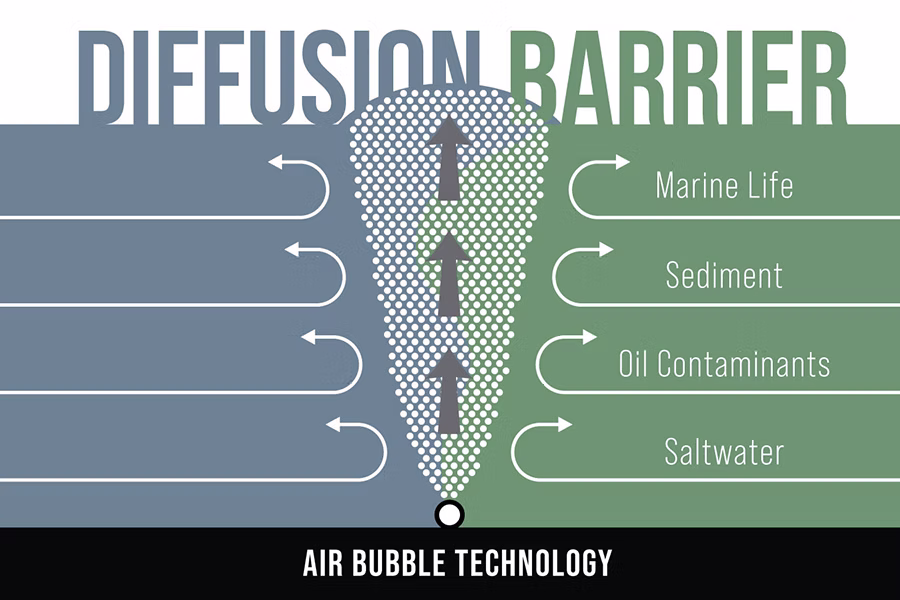

Compressed air exits through openings in the diffuser pipe and forms a line of rising bubbles. As those bubbles move toward the surface, they create an upward water flow and a continuous pneumatic barrier.
The performance of the curtain depends on several factors, including:
Airflow volume
Bubble size
Diffuser configuration
Number of pipes
Spacing between air outlets
Water conditions and wave frequency
These variables affect the density and behavior of the bubble barrier and must be considered for the specific application.
Why Oil-Free Compressed Air Is Used
Because the compressed air is discharged directly into the water, oil-free air can be important where introducing compressor lubricant into the surrounding environment is unacceptable.
The compressor must also provide enough airflow and pressure to overcome the water depth and maintain the required bubble pattern across the complete diffuser system.
Bubble Curtains for Underwater Noise Reduction
One of the most established uses of bubble curtains is reducing underwater noise generated by activities such as pile driving and drilling.
Marine construction can generate strong underwater sound waves that travel well beyond the immediate work area. This is particularly important on projects such as offshore wind foundations, bridge supports, and other structures requiring piles to be driven into the seabed.
A bubble curtain installed around the work zone can help attenuate some of this sound as it travels through the bubble-filled water. The actual level of noise reduction depends on the curtain design, site conditions, sound frequency, and construction activity.
This approach is used to help reduce the acoustic impact of construction on marine species that rely on underwater sound for communication and navigation.
Oil Spill Containment and Marine Operations
Bubble curtains can also be used to influence the movement of oil and other floating materials.
The upward water movement generated by the bubbles can help direct surface material toward a collection area or reduce its movement beyond a designated zone.
Because the barrier is created by air rather than a solid physical structure, vessels can generally move across it without removing the system. This can be useful during response or recovery operations where maintaining access to the work area is important.
Sediment Control During Marine Construction
Dredging, drilling, and other marine construction activities can disturb sediment and create suspended material in the water.
Bubble curtains can be applied as a pneumatic containment method to help influence the movement of that suspended material while allowing boats and work equipment to move through the area.
The effectiveness of this approach depends on factors such as water flow, sediment characteristics, diffuser arrangement, and compressed air delivery.
Using Bubble Curtains to Direct Floating Debris
Another environmental application is the control of floating waste in rivers and canals.
By installing the diffuser at an angle to the direction of water flow, the rising bubbles can create a current that guides plastic waste and other floating debris toward a collection point.
This allows debris to be concentrated for removal without installing a solid barrier across the entire waterway, which can help maintain passage for vessels.
Bubble Curtains for De-Icing
Bubble curtains can also help limit ice formation in marinas, ports, and similar locations.
Air released from a submerged diffuser creates an upward current that moves deeper water toward the surface. Where deeper water is warmer than the surface layer, this circulation can help prevent or reduce ice formation near the bubble curtain.
The same principle can be used around infrastructure where maintaining open water is operationally important.
Compressed Air Requirements for Bubble Curtain Systems
Bubble curtain performance depends heavily on the compressed air supply. The compressor must provide sufficient pressure to discharge air at the installed water depth and enough airflow to maintain the intended bubble density across the diffuser.
Portable oil-free compressors can support temporary projects such as marine construction, while stationary systems may be more appropriate for permanent or long-duration installations.
Sullair, for example, offers both portable and stationary oil-free compressor configurations that can be applied to projects requiring continuous delivery of oil-free compressed air.
Bubble Curtains Are an Application of Controlled Airflow
A bubble curtain is a relatively simple concept, but its performance depends on careful control of airflow, pressure, diffuser design, and installation conditions.
From underwater noise attenuation and sediment control to debris management and de-icing, bubble curtains show how compressed air can be used to influence water movement without relying on a permanent physical barrier.
For each application, compressor capacity and diffuser design should be matched to the water depth, site conditions, and intended function of the system.
